Train Your Large Model on Multiple GPUs with Fully Sharded Data Parallelism

By Adrian Tam on January 12, 2026 in Training Transformer Models 0

Some language models are too large to train on a single GPU. In addition to creating the model as a pipeline of stages, as in Pipeline Parallelism, you can split the model across multiple GPUs using Fully Sharded Data Parallelism (FSDP). In this article, you will learn how to use FSDP to split models for training. In particular, you will learn about:

The idea of sharding and how FSDP works
How to use FSDP in PyTorch

Let’s get started!

Train Your Large Model on Multiple GPUs with Fully Sharded Data Parallelism.
Photo by Ferenc Horvath. Some rights reserved.

Overview

This article is divided into five parts; they are:

Introduction to Fully Sharded Data Parallel
Preparing Model for FSDP Training
Training Loop with FSDP
Fine-Tuning FSDP Behavior
Checkpointing FSDP Models

Introduction to Fully Sharded Data Parallel

Sharding is a term originally used in database management systems, where it refers to dividing a database into smaller units, called shards, to improve performance. In machine learning, sharding refers to dividing model parameters across multiple devices. Unlike pipeline parallelism, the shards contain only a portion of any complete operation. For example, the nn.Linear module is essentially a matrix multiplication. A sharded version of it contains only a portion of the matrix. When a sharded module needs to process data, you must gather the shards to create a complete matrix temporarily and perform the operation. Afterwards, this matrix is discarded to reclaim memory.

When you use FSDP, all model parameters are sharded, and each process holds exactly one shard. Unlike data parallelism, where each GPU has a full copy of the model and only data and gradient updates are synchronized across GPUs, FSDP does not keep a full copy of the model on each GPU; instead, both the model and the data are synchronized on every step. Therefore, FSDP incurs higher communication overhead in exchange for lower memory usage.

FSDP requires processes to exchange data to unshard the model.

The workflow of FSDP is as follows:

There will be multiple processes running together, possibly on multiple machines across a network. Each process (equivalently, each GPU) holds only one shard of the model. When the model is sharded, each module’s weights are stored as a DTensor (distributed tensor, sharded across multiple GPUs) rather than a plain Tensor. Therefore, no process can run any module independently. Before each operation, FSDP issues an all-gather request to enable all processes to exchange a module’s shards with one another. This creates a temporary unsharded module, and each process runs the forward pass on this module with its micro-batch of data. Afterward, the unsharded module is discarded as the processes move on to the next module in the model.

Similar operations happen in the backward pass. Each module must be unsharded when FSDP issues an all-gather request to it. Then the backward pass computes gradients from the forward pass results. Note that each process operates on a different micro-batch of data, so the gradients computed by each process are different. Therefore, FSDP issues a reduce-scatter request, causing all processes to exchange gradients so that the final batch-wide gradient is averaged. This final gradient is then used to update the model parameters on every shard.

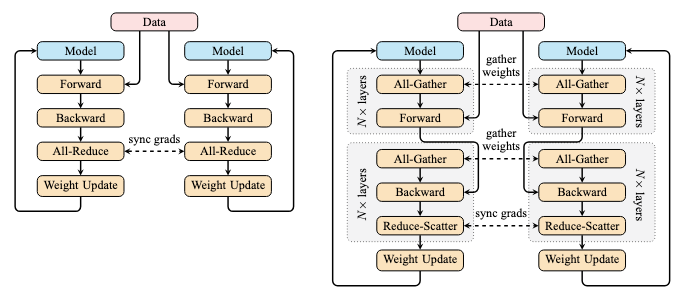

As shown in the figure above, FSDP requires more communication and has a more complex workflow than plain data parallelism. Since the model is distributed across multiple GPUs, you do not need as much VRAM to host a very large model. This is the motivation for using FSDP for training.

Comparing DP (left) and FSDP (right). Illustration adapted from the blog post by Ott et al.

To improve FSDP’s efficiency, PyTorch uses prefetching to overlap communication and computation. While your GPU computes the first module, the processes exchange shards from the second module, so the second module becomes available once the first is complete. This keeps both the GPU and the network busy, reducing per-step latency. Some tuning in FSDP can help you maximize such overlap and improve training throughput, often at the cost of higher memory usage.

Preparing Model for FSDP Training

When you need FSDP, usually it means your model is too large to fit on a single GPU. One way to enable such a large model is to train it on a fake device meta, then shard it and distribute the shards across multiple GPUs.

In PyTorch, you need to use the torchrun command to launch an FSDP training script with multiple processes. Under torchrun, each process will see the world size (total number of processes), its rank (the index of the current process), and its local rank (the index of the GPU device on the current machine). In the script, you need to initialize this as a process group:

import torch.distributed as dist

# Initialize the distributed environment
dist.init_process_group(backend="nccl")
local_rank = int(os.environ["LOCAL_RANK"])
device = torch.device(f"cuda:{local_rank}")
rank = dist.get_rank()
world_size = dist.get_world_size()
print(f"World size {world_size}, rank {rank}, local rank {local_rank}. Using {device}")

import torch.distributed as dist

# Initialize the distributed environment

dist.init_process_group(backend="nccl")

local_rank = int(os.environ["LOCAL_RANK"])

device = torch.device(f"cuda:{local_rank}")

rank = dist.get_rank()

world_size = dist.get_world_size()

print(f"World size {world_size}, rank {rank}, local rank {local_rank}. Using {device}")

Next, you should create the model and then shard it. The code below is based on the model architecture described in the previous post:

...
from torch.distributed.fsdp import FSDPModule, fully_shard

with torch.device("meta"):
    model_config = LlamaConfig()
    model = LlamaForPretraining(model_config)

for layer in model.base_model.layers:
    fully_shard(layer)
fully_shard(model.base_model)
fully_shard(model)
model.to_empty(device=device)
model.reset_parameters()
assert isinstance(model, FSDPModule), f"Expected FSDPModule, got {type(model)}"

...

from torch.distributed.fsdp import FSDPModule, fully_shard

with torch.device("meta"):

model_config = LlamaConfig()

model = LlamaForPretraining(model_config)

for layer in model.base_model.layers:

fully_shard(layer)

fully_shard(model.base_model)

fully_shard(model)

model.to_empty(device=device)

model.reset_parameters()

assert isinstance(model, FSDPModule), f"Expected FSDPModule, got {type(model)}"

In PyTorch, you use the fully_shard() function to create a sharded model. This function replaces parameters of type Tensor with DTensor in-place. It also modifies the model to perform the all-gather operation before the actual computation.

You should notice that in the above, fully_shard() is not only called on model, but also on model.base_model as well as each transformer block in the base model. This needs careful consideration.

Usually, you do not want to shard only the top-level model, but also its submodules. When you do so, you must apply fully_shard() from bottom up, with the top-level model being sharded last. Each sharded module will be one unit of all-gather. In the design shown above, when you pass a tensor to model, the top-level model components will be unsharded, except for those that were sharded separately. Since it is a decoder-only transformer model, the input should be processed by the base model first, then the prediction head in the top model. FSDP will unshard the base model, except for each repeating transformer block. This includes the input embedding layer, which is the first operation applied to the input tensor.

After the embedding layer, the input tensor should be processed by a sequence of transformer blocks. Each block is sharded separately, so all-gather is triggered for each block. The block transforms the input and passes it on to the next transformer block. After the last transformer block, the RMS norm layer in the base model, which is already unsharded, processes the output before returning to the top model for the prediction.

This is why you do not want to shard the top-level model: if you do, the all-gather operation will create a full model on each GPU, violating the assumption that each GPU has insufficient memory to support the full model. In that case, you should use plain data parallelism rather than FSDP.

In this design, each GPU requires one complete transformer block plus the other modules in the top and base models, such as the embedding layer, the final RMS norm layer in the base model, and the prediction head in the top model. You can revise this design (for example, by further sharding model.base_model.embed_tokens and breaking down each transformer block into attention and feed-forward sublayers) to further reduce the memory requirement.

After you have the sharded model, you can transfer it from a meta device to your local GPU with model.to_empty(device=device). You also need to reset the weights of the newly created model (unless you want to initialize them from a checkpoint). You can borrow the function reset_all_weights() from the previous post to reset the weights. Here is another way that uses model.reset_parameters(). This requires you to implement the corresponding member function in each module:

lass LlamaAttention(nn.Module):
    """Grouped-query attention with rotary embeddings."""

    def __init__(self, config: LlamaConfig) -> None:
        super().__init__()
        self.hidden_size = config.hidden_size
        self.num_heads = config.num_attention_heads
        self.head_dim = self.hidden_size // self.num_heads
        self.num_kv_heads = config.num_key_value_heads  # GQA: H_kv < H_q

        # Linear layers for Q, K, V projections
        self.q_proj = nn.Linear(self.hidden_size, self.num_heads * self.head_dim, bias=False)
        self.k_proj = nn.Linear(self.hidden_size, self.num_kv_heads * self.head_dim, bias=False)
        self.v_proj = nn.Linear(self.hidden_size, self.num_kv_heads * self.head_dim, bias=False)
        self.o_proj = nn.Linear(self.num_heads * self.head_dim, self.hidden_size, bias=False)

    def reset_parameters(self):
        self.q_proj.reset_parameters()
        self.k_proj.reset_parameters()
        self.v_proj.reset_parameters()
        self.o_proj.reset_parameters()

    def forward(self, hidden_states: Tensor, rope: RotaryPositionEncoding, attn_mask: Tensor) -> Tensor:
        ...

class LlamaMLP(nn.Module):
    """Feed-forward network with SwiGLU activation."""

    def __init__(self, config: LlamaConfig) -> None:
        super().__init__()
        # Two parallel projections for SwiGLU
        self.gate_proj = nn.Linear(config.hidden_size, config.intermediate_size, bias=False)
        self.up_proj = nn.Linear(config.hidden_size, config.intermediate_size, bias=False)
        self.act_fn = F.silu  # SwiGLU activation function
        # Project back to hidden size
        self.down_proj = nn.Linear(config.intermediate_size, config.hidden_size, bias=False)

    def reset_parameters(self):
        self.gate_proj.reset_parameters()
        self.up_proj.reset_parameters()
        self.down_proj.reset_parameters()

    def forward(self, x: Tensor) -> Tensor:
        ...

class LlamaDecoderLayer(nn.Module):
    """Single transformer layer for a Llama model."""

    def __init__(self, config: LlamaConfig) -> None:
        super().__init__()
        self.input_layernorm = nn.RMSNorm(config.hidden_size, eps=1e-5)
        self.self_attn = LlamaAttention(config)
        self.post_attention_layernorm = nn.RMSNorm(config.hidden_size, eps=1e-5)
        self.mlp = LlamaMLP(config)

    def reset_parameters(self):
        self.input_layernorm.reset_parameters()
        self.self_attn.reset_parameters()
        self.post_attention_layernorm.reset_parameters()
        self.mlp.reset_parameters()

    def forward(self, hidden_states: Tensor, rope: RotaryPositionEncoding, attn_mask: Tensor) -> Tensor:
        ...

class LlamaModel(nn.Module):
    """The full Llama model without any pretraining heads."""

    def __init__(self, config: LlamaConfig) -> None:
        super().__init__()
        self.rotary_emb = RotaryPositionEncoding(
            config.hidden_size // config.num_attention_heads,
            config.max_position_embeddings,
        )

        self.embed_tokens = nn.Embedding(config.vocab_size, config.hidden_size)
        self.layers = nn.ModuleList([
            LlamaDecoderLayer(config) for _ in range(config.num_hidden_layers)
        ])
        self.norm = nn.RMSNorm(config.hidden_size, eps=1e-5)

    def reset_parameters(self):
        self.embed_tokens.reset_parameters()
        for layer in self.layers:
            layer.reset_parameters()
        self.norm.reset_parameters()

    def forward(self, input_ids: Tensor, attn_mask: Tensor) -> Tensor:
        ...

class LlamaForPretraining(nn.Module):
    def __init__(self, config: LlamaConfig) -> None:
        super().__init__()
        self.base_model = LlamaModel(config)
        self.lm_head = nn.Linear(config.hidden_size, config.vocab_size, bias=False)

    def reset_parameters(self):
        self.base_model.reset_parameters()
        self.lm_head.reset_parameters()

    def forward(self, input_ids: Tensor, attn_mask: Tensor) -> Tensor:
        ...

100

101

lass LlamaAttention(nn.Module):

"""Grouped-query attention with rotary embeddings."""

def __init__(self, config: LlamaConfig) -> None:

super().__init__()

self.hidden_size = config.hidden_size

self.num_heads = config.num_attention_heads

self.head_dim = self.hidden_size // self.num_heads

self.num_kv_heads = config.num_key_value_heads # GQA: H_kv < H_q

# Linear layers for Q, K, V projections

self.q_proj = nn.Linear(self.hidden_size, self.num_heads * self.head_dim, bias=False)

self.k_proj = nn.Linear(self.hidden_size, self.num_kv_heads * self.head_dim, bias=False)

self.v_proj = nn.Linear(self.hidden_size, self.num_kv_heads * self.head_dim, bias=False)

self.o_proj = nn.Linear(self.num_heads * self.head_dim, self.hidden_size, bias=False)

def reset_parameters(self):

self.q_proj.reset_parameters()

self.k_proj.reset_parameters()

self.v_proj.reset_parameters()

self.o_proj.reset_parameters()

def forward(self, hidden_states: Tensor, rope: RotaryPositionEncoding, attn_mask: Tensor) -> Tensor:

...

class LlamaMLP(nn.Module):

"""Feed-forward network with SwiGLU activation."""

def __init__(self, config: LlamaConfig) -> None:

super().__init__()

# Two parallel projections for SwiGLU

self.gate_proj = nn.Linear(config.hidden_size, config.intermediate_size, bias=False)

self.up_proj = nn.Linear(config.hidden_size, config.intermediate_size, bias=False)

self.act_fn = F.silu # SwiGLU activation function

# Project back to hidden size

self.down_proj = nn.Linear(config.intermediate_size, config.hidden_size, bias=False)

def reset_parameters(self):

self.gate_proj.reset_parameters()

self.up_proj.reset_parameters()

self.down_proj.reset_parameters()

def forward(self, x: Tensor) -> Tensor:

...

class LlamaDecoderLayer(nn.Module):

"""Single transformer layer for a Llama model."""

def __init__(self, config: LlamaConfig) -> None:

super().__init__()

self.input_layernorm = nn.RMSNorm(config.hidden_size, eps=1e-5)

self.self_attn = LlamaAttention(config)

self.post_attention_layernorm = nn.RMSNorm(config.hidden_size, eps=1e-5)

self.mlp = LlamaMLP(config)

def reset_parameters(self):

self.input_layernorm.reset_parameters()

self.self_attn.reset_parameters()

self.post_attention_layernorm.reset_parameters()

self.mlp.reset_parameters()

def forward(self, hidden_states: Tensor, rope: RotaryPositionEncoding, attn_mask: Tensor) -> Tensor:

...

class LlamaModel(nn.Module):

"""The full Llama model without any pretraining heads."""

def __init__(self, config: LlamaConfig) -> None:

super().__init__()

self.rotary_emb = RotaryPositionEncoding(

config.hidden_size // config.num_attention_heads,

config.max_position_embeddings,

)

self.embed_tokens = nn.Embedding(config.vocab_size, config.hidden_size)

self.layers = nn.ModuleList([

LlamaDecoderLayer(config) for _ in range(config.num_hidden_layers)

])

self.norm = nn.RMSNorm(config.hidden_size, eps=1e-5)

def reset_parameters(self):

self.embed_tokens.reset_parameters()

for layer in self.layers:

layer.reset_parameters()

self.norm.reset_parameters()

def forward(self, input_ids: Tensor, attn_mask: Tensor) -> Tensor:

...

class LlamaForPretraining(nn.Module):

def __init__(self, config: LlamaConfig) -> None:

super().__init__()

self.base_model = LlamaModel(config)

self.lm_head = nn.Linear(config.hidden_size, config.vocab_size, bias=False)

def reset_parameters(self):

self.base_model.reset_parameters()

self.lm_head.reset_parameters()

def forward(self, input_ids: Tensor, attn_mask: Tensor) -> Tensor:

...

You know the model is sharded if it is an instance of FSDPModule. Subsequently, you can create the optimizer and other training components as usual. The PyTorch optimizer supports updating DTensor objects the same way as plain Tensor objects.

Training Loop with FSDP

Using FSDP is straightforward. Virtually nothing needs to be changed in the training loop:

...
optimizer = torch.optim.AdamW(
    model.parameters(), lr=learning_rate, betas=(0.9, 0.99), eps=1e-8, weight_decay=0.1,
)
warmup_scheduler = lr_scheduler.LinearLR(
    optimizer,
    start_factor=0.1, end_factor=1.0, total_iters=num_warmup_steps,
)
cosine_scheduler = lr_scheduler.CosineAnnealingLR(
    optimizer,
    T_max=num_training_steps - num_warmup_steps,
    eta_min=0,
)
scheduler = lr_scheduler.SequentialLR(
    optimizer,
    schedulers=[warmup_scheduler, cosine_scheduler],
    milestones=[num_warmup_steps],
)
loss_fn = nn.CrossEntropyLoss(ignore_index=PAD_TOKEN_ID)

# Start training loop
for epoch in range(epochs):
    pbar = tqdm.tqdm(dataloader, desc=f"Epoch {epoch+1}/{epochs}")
    for batch_id, batch in enumerate(pbar):
        # Explicit prefetching before sending any data to model
        model.unshard()
        # Get batched data, move from CPU to GPU
        input_ids, target_ids = batch
        input_ids = input_ids.to(device)
        target_ids = target_ids.to(device)
        # create attention mask: causal mask + padding mask
        attn_mask = create_causal_mask(input_ids) + \
                    create_padding_mask(input_ids, PAD_TOKEN_ID)
        # Extract output from model
        logits = model(input_ids, attn_mask)
        # Compute loss: cross-entropy between logits and target, ignoring padding tokens
        loss = loss_fn(logits.view(-1, logits.size(-1)), target_ids.view(-1))
        # Backward with loss and gradient clipping by L2 norm to 1.0
        # Optimizer and gradient clipping works on DTensor
        optimizer.zero_grad()
        loss.backward()
        torch.nn.utils.clip_grad_norm_(model.parameters(), 1.0)
        optimizer.step()
        scheduler.step()
        pbar.set_postfix(loss=loss.item())
        pbar.update(1)
    pbar.close()

...

optimizer = torch.optim.AdamW(

model.parameters(), lr=learning_rate, betas=(0.9, 0.99), eps=1e-8, weight_decay=0.1,

)

warmup_scheduler = lr_scheduler.LinearLR(

optimizer,

start_factor=0.1, end_factor=1.0, total_iters=num_warmup_steps,

)

cosine_scheduler = lr_scheduler.CosineAnnealingLR(

optimizer,

T_max=num_training_steps - num_warmup_steps,

eta_min=0,

)

scheduler = lr_scheduler.SequentialLR(

optimizer,

schedulers=[warmup_scheduler, cosine_scheduler],

milestones=[num_warmup_steps],

)

loss_fn = nn.CrossEntropyLoss(ignore_index=PAD_TOKEN_ID)

# Start training loop

for epoch in range(epochs):

pbar = tqdm.tqdm(dataloader, desc=f"Epoch {epoch+1}/{epochs}")

for batch_id, batch in enumerate(pbar):

# Explicit prefetching before sending any data to model

model.unshard()

# Get batched data, move from CPU to GPU

input_ids, target_ids = batch

input_ids = input_ids.to(device)

target_ids = target_ids.to(device)

# create attention mask: causal mask + padding mask

attn_mask = create_causal_mask(input_ids) + \

create_padding_mask(input_ids, PAD_TOKEN_ID)

# Extract output from model

logits = model(input_ids, attn_mask)

# Compute loss: cross-entropy between logits and target, ignoring padding tokens

loss = loss_fn(logits.view(-1, logits.size(-1)), target_ids.view(-1))

# Backward with loss and gradient clipping by L2 norm to 1.0

# Optimizer and gradient clipping works on DTensor

optimizer.zero_grad()

loss.backward()

torch.nn.utils.clip_grad_norm_(model.parameters(), 1.0)

optimizer.step()

scheduler.step()

pbar.set_postfix(loss=loss.item())

pbar.update(1)

pbar.close()

The only change you can observe is the use of model.unshard() to trigger the all-gather before the forward pass, but this is optional. Even if you do not call it, model(input_ids, attn_mask) will still trigger the all-gather operation internally. This line starts the all-gather before the input tensor is prepared for the forward pass.

However, FSDP is partially a data parallelism technique. As with distributed data parallelism, you should use a sampler with your data loader so that each rank in the process group processes a different micro-batch. This works because each process receives a complete module of the model via all-gather, so each process can use that module to process a different micro-batch of data. In essence, FSDP exchanges both the model and the training data, going one step further than data parallelism. Below is how you should set up your data loader:

...
dataset = PretrainingDataset(dataset, tokenizer, seq_length)
sampler = DistributedSampler(dataset, shuffle=False)
dataloader = torch.utils.data.DataLoader(
    dataset,
    batch_size=batch_size,
    sampler=sampler,
    pin_memory=True,  # optional
    shuffle=False,
    num_workers=2,
    prefetch_factor=2,
)

...

dataset = PretrainingDataset(dataset, tokenizer, seq_length)

sampler = DistributedSampler(dataset, shuffle=False)

dataloader = torch.utils.data.DataLoader(

dataset,

batch_size=batch_size,

sampler=sampler,

pin_memory=True, # optional

shuffle=False,

num_workers=2,

prefetch_factor=2,

)

This is the same as how you set up the data loader for distributed data parallel in the previous article.

Fine-Tuning FSDP Behavior

The above is all you need to run FSDP training. However, you can introduce variations to fine-tune FSDP’s behavior.

Using `torch.compile()`

If your model can be compiled, you can also compile an FSDP model. However, you need to compile it after sharding the model, so the compiled model can reference the distributed tensors rather than plain tensors.

...
# create sharded model first
fully_shard(model)
model.to_empty(device=device)
model.reset_parameters()

...
# create data loader, optimizer, scheduler, loss function for the training loop
# then create compiled version
model = torch.compile(model)
loss_fn = torch.compile(loss_fn)

# Start training loop
for epoch in range(epochs):
    for batch in dataloader:
        ...
        logits = model(input_ids, attn_mask)
        loss = loss_fn(logits.view(-1, logits.size(-1)), target_ids.view(-1))
        optimizer.zero_grad()
        loss.backward()
        torch.nn.utils.clip_grad_norm_(model.parameters(), 1.0)
        optimizer.step()

...

# create sharded model first

fully_shard(model)

model.to_empty(device=device)

model.reset_parameters()

...

# create data loader, optimizer, scheduler, loss function for the training loop

# then create compiled version

model = torch.compile(model)

loss_fn = torch.compile(loss_fn)

# Start training loop

for epoch in range(epochs):

for batch in dataloader:

...

logits = model(input_ids, attn_mask)

loss = loss_fn(logits.view(-1, logits.size(-1)), target_ids.view(-1))

optimizer.zero_grad()

loss.backward()

torch.nn.utils.clip_grad_norm_(model.parameters(), 1.0)

optimizer.step()

Arguments to `fully_shard()`

Recall that you can use torch.autocast() to run mixed precision training. You can also enable mixed-precision training in FSDP, but you must apply it when sharding the model. The change needed is particularly simple:

...
from torch.distributed.fsdp import MixedPrecisionPolicy, fully_shard

with torch.device("meta"):
    model_config = LlamaConfig()
    model = LlamaForPretraining(model_config)

mp_policy = MixedPrecisionPolicy(
    param_dtype=torch.bfloat16,
    reduce_dtype=torch.float32,
)
for layer in model.base_model.layers:
    fully_shard(layer, mp_policy=mp_policy)
fully_shard(model.base_model, mp_policy=mp_policy)
fully_shard(model, mp_policy=mp_policy)
model.to_empty(device=device)

...

from torch.distributed.fsdp import MixedPrecisionPolicy, fully_shard

with torch.device("meta"):

model_config = LlamaConfig()

model = LlamaForPretraining(model_config)

mp_policy = MixedPrecisionPolicy(

param_dtype=torch.bfloat16,

reduce_dtype=torch.float32,

)

for layer in model.base_model.layers:

fully_shard(layer, mp_policy=mp_policy)

fully_shard(model.base_model, mp_policy=mp_policy)

fully_shard(model, mp_policy=mp_policy)

model.to_empty(device=device)

When you shard the model, you can specify the argument mp_policy to describe exactly how the mixed precision training should be performed. In the example above, you keep the model parameters in bfloat16, but use float32 for gradients (during scatter-reduce). You can also specify output_dtype and cast_forward_inputs to define the data types of the forward pass inputs and outputs. Note that since fully_shard() is applied to each module, you are free to use different mixed precision policies for different modules.

Of course, PyTorch still allows you to use torch.set_default_dtype(torch.bfloat16) to change the default data type for the entire model. This changes the default data type for all DTensor objects created.

In FSDP, you need an all-gather step before the actual forward or backward computation. Before all-gather, you do not have a complete parameter for the operation. Since inter-process communication is slow and a lot of data needs to be moved to the GPU anyway, you can apply CPU offloading to keep your sharded model in CPU memory when it is not in use. This means:

...
from torch.distributed.fsdp import MixedPrecisionPolicy, CPUOffloadPolicy, fully_shard

with torch.device("meta"):
    model_config = LlamaConfig()
    model = LlamaForPretraining(model_config)

mp_policy = MixedPrecisionPolicy(
    param_dtype=torch.bfloat16,
    reduce_dtype=torch.float32,
)
offload_policy = CPUOffloadPolicy(pin_memory=True)
for layer in model.base_model.layers:
    fully_shard(layer, mp_policy=mp_policy, offload_policy=offload_policy)
fully_shard(model.base_model, mp_policy=mp_policy, offload_policy=offload_policy)
fully_shard(model, mp_policy=mp_policy, offload_policy=offload_policy)
model.to_empty(device="cpu")

...

from torch.distributed.fsdp import MixedPrecisionPolicy, CPUOffloadPolicy, fully_shard

with torch.device("meta"):

model_config = LlamaConfig()

model = LlamaForPretraining(model_config)

mp_policy = MixedPrecisionPolicy(

param_dtype=torch.bfloat16,

reduce_dtype=torch.float32,

)

offload_policy = CPUOffloadPolicy(pin_memory=True)

for layer in model.base_model.layers:

fully_shard(layer, mp_policy=mp_policy, offload_policy=offload_policy)

fully_shard(model.base_model, mp_policy=mp_policy, offload_policy=offload_policy)

fully_shard(model, mp_policy=mp_policy, offload_policy=offload_policy)

model.to_empty(device="cpu")

Typically, using CPU offloading makes the training loop noticeably slower. If you use CPU offloading, you should consider changing the training loop such that the optimizer zeros out gradient tensors instead of setting the gradients to None:

...
for batch_id, batch in enumerate(pbar):
    ...
    logits = model(input_ids, attn_mask)
    loss = loss_fn(logits.view(-1, logits.size(-1)), target_ids.view(-1))
    optimizer.zero_grad(set_to_none=False)  # retain allocated grad tensor
    loss.backward()
    optimizer.step()
    ...

...

for batch_id, batch in enumerate(pbar):

...

logits = model(input_ids, attn_mask)

loss = loss_fn(logits.view(-1, logits.size(-1)), target_ids.view(-1))

optimizer.zero_grad(set_to_none=False) # retain allocated grad tensor

loss.backward()

optimizer.step()

...

This is because CPU memory is usually more abundant than GPU memory, and you can afford to keep the allocated gradient tensors in memory to avoid the overhead of re-allocating them.

The third argument you can add to fully_shard() is reshard_after_forward=True. By default (reshard_after_forward=None), FSDP will keep the unsharded model in the memory of the root module after the forward pass, so the backward pass does not need to call all-gather again. Non-root modules will always discard the unsharded tensors, unless you set reshard_after_forward=False.

Usually, you do not want to change this setting, since this likely means you need to run all-gather immediately after discarding the unsharded tensors. But understanding how this parameter works lets you reconsider your model design: In the implementation of LlamaForPretraining above, the root module contains only the prediction head. But if you move the embedding layer from the base model LlamaModel to the root model, you will keep the embedding layer (which is usually large) in memory for a long time. This is the model engineering you can consider when applying FSDP.

Gradient Checkpointing

FSDP has a lower memory requirement than plain data parallelism. If you want to reduce memory usage further, you can use gradient checkpointing with FSDP. Unlike the plain model, you do not use torch.utils.checkpoint.checkpoint() to wrap the part that requires gradient checkpointing. Instead, you set a policy and apply it to the sharded model:

...
import functools

from torch.distributed.algorithms._checkpoint.checkpoint_wrapper import (
    apply_activation_checkpointing,
    checkpoint_wrapper,
)
from torch.distributed.fsdp.wrap import transformer_auto_wrap_policy

wrap_policy = functools.partial(
    transformer_auto_wrap_policy,
    transformer_layer_cls={LlamaDecoderLayer, nn.Embedding},
)
apply_activation_checkpointing(
    model,
    checkpoint_wrapper_fn=checkpoint_wrapper,
    auto_wrap_policy=wrap_policy,
)

...

import functools

from torch.distributed.algorithms._checkpoint.checkpoint_wrapper import (

apply_activation_checkpointing,

checkpoint_wrapper,

)

from torch.distributed.fsdp.wrap import transformer_auto_wrap_policy

wrap_policy = functools.partial(

transformer_auto_wrap_policy,

transformer_layer_cls={LlamaDecoderLayer, nn.Embedding},

)

apply_activation_checkpointing(

model,

checkpoint_wrapper_fn=checkpoint_wrapper,

auto_wrap_policy=wrap_policy,

)

The wrap_policy is a helper function that checks whether the module belongs to one of the listed classes. If so, gradient checkpointing will be applied to it, so its internal activations are discarded after the forward pass and recomputed during the backward pass. The function apply_activation_checkpointing() recursively scans the module and applies gradient checkpointing to its submodules.

As a reminder, gradient checkpointing is a technique that trades time for memory during training. You save memory by discarding intermediate activations, but the backward pass is slower due to recomputation.

All-Gather Prefetching

FSDP implements a similar efficiency optimization to pipeline parallelism: it issues an all-gather request to the next module while the current module is processing data. This is called prefetching, and it deliberately overlaps communication and computation to reduce the latency of each training step.

You can indeed control how the prefetching is performed. Below is an example:

...
num_prefetch = 2
modules = list(model.base_model.layers)
for i, module in enumerate(modules):
    if i == len(modules) - 1:
        break
    module.set_modules_to_forward_prefetch(modules[i+1:i+num_prefetch+1])
for i, module in enumerate(modules):
    if i == 0:
        continue
    module.set_modules_to_backward_prefetch(modules[max(0, i-num_prefetch):i])

...

num_prefetch = 2

modules = list(model.base_model.layers)

for i, module in enumerate(modules):

if i == len(modules) - 1:

break

module.set_modules_to_forward_prefetch(modules[i+1:i+num_prefetch+1])

for i, module in enumerate(modules):

if i == 0:

continue

module.set_modules_to_backward_prefetch(modules[max(0, i-num_prefetch):i])

By default, FSDP determines the next module and prefetches it. The code above causes FSDP to prefetch not the next item but two items ahead. The modules list enumerates the sharded modules in the model in their execution order. Then, for each module, you set the forward prefetch to two subsequent modules and the backward prefetch to two preceding modules.

Note that FSDP will not check if you specify them in the correct execution order. If you prefetch the wrong module, your training performance will deteriorate. But you also must not specify a module that is not sharded (such as model.lm_head in the example above) as FSDP will not be able to issue all-gather requests for it.

Checkpointing FSDP Models

FSDP model is still a PyTorch model, but with the model weights replaced by DTensor objects. If you want to, you can still manipulate the DTensor objects like a Tensor object, as the optimizer would do in your training loop. You can also check the DTensor objects to see what is in each shard:

...
from torch.distributed.fsdp import FSDPModule
from torch.distributed.tensor import Shard

# Expect the model object to be both FSDPModule type and the original model type
assert isinstance(model, FSDPModule)
assert isinstance(model, LlamaForPretraining)
rank = torch.distributed.get_rank()
for param in model.parameters():
    # DTensors should have a placement
    assert param.placements == (Shard(rank),)
    # DTensors has the same dtype as the original tensor
    assert param.dtype == torch.float32
    # You can see what is in this shard
    print(param.get_local_tensor())

...

from torch.distributed.fsdp import FSDPModule

from torch.distributed.tensor import Shard

# Expect the model object to be both FSDPModule type and the original model type

assert isinstance(model, FSDPModule)

assert isinstance(model, LlamaForPretraining)

rank = torch.distributed.get_rank()

for param in model.parameters():

# DTensors should have a placement

assert param.placements == (Shard(rank),)

# DTensors has the same dtype as the original tensor

assert param.dtype == torch.float32

# You can see what is in this shard

print(param.get_local_tensor())

You can use this property to save and load a sharded model. However, you must ensure that only one process is saving the model so that you do not overwrite the file on disk:

# Save model on rank 0 (the master process)
if torch.distributed.get_rank() == 0:
    sharded_state_dict = model.state_dict()   # map to DTensor
    full_state_dict = {}  # map to plain Tensor on CPU
    for param_name, sharded_param in sharded_state_dict.items():
        full_param = sharded_param.full_tensor()
        full_state_dict[param_name] = full_param.cpu()
    torch.save(full_state_dict, "model.pth")

# Load model on all processes together
from torch.distributed.tensor import distribute_tensor
dist.barrier()
full_state_dict = torch.load("model.pth", map_location="cpu", mmap=True)
meta_sharded_state_dict = model.state_dict()  # FSDPModule on meta device
sharded_state_dict = {}
for param_name, full_tensor in full_state_dict.items():
    # create new DTensor, reusing the device mesh and placement as fully_shard() assigned
    sharded_meta_param = meta_sharded_state_dict.get(param_name)
    dtensor = distribute_tensor(
        full_tensor,
        sharded_meta_param.device_mesh,
        sharded_meta_param.placements,
    )
    sharded_state_dict[param_name] = nn.Parameter(dtensor)
# must use `assign=True` to replace tensor on meta device with actual DTensor
model.load_state_dict(sharded_state_dict, strict=False, assign=True)
dist.barrier()

# Save model on rank 0 (the master process)

if torch.distributed.get_rank() == 0:

sharded_state_dict = model.state_dict() # map to DTensor

full_state_dict = {} # map to plain Tensor on CPU

for param_name, sharded_param in sharded_state_dict.items():

full_param = sharded_param.full_tensor()

full_state_dict[param_name] = full_param.cpu()

torch.save(full_state_dict, "model.pth")

# Load model on all processes together

from torch.distributed.tensor import distribute_tensor

dist.barrier()

full_state_dict = torch.load("model.pth", map_location="cpu", mmap=True)

meta_sharded_state_dict = model.state_dict() # FSDPModule on meta device

sharded_state_dict = {}

for param_name, full_tensor in full_state_dict.items():

# create new DTensor, reusing the device mesh and placement as fully_shard() assigned

sharded_meta_param = meta_sharded_state_dict.get(param_name)

dtensor = distribute_tensor(

full_tensor,

sharded_meta_param.device_mesh,

sharded_meta_param.placements,

)

sharded_state_dict[param_name] = nn.Parameter(dtensor)

# must use `assign=True` to replace tensor on meta device with actual DTensor

model.load_state_dict(sharded_state_dict, strict=False, assign=True)

dist.barrier()

Indeed, there is an easier method: The distributed checkpointing API, as you have already seen in the previous article:

...
from torch.distributed.checkpoint import load, save
from torch.distributed.checkpoint.state_dict import get_state_dict, set_state_dict, StateDictOptions

def save_checkpoint(model, optimizer):
    dist.barrier()
    model_state, optimizer_state = get_state_dict(
        model, optimizer, options=StateDictOptions(full_state_dict=True, cpu_offload=True)
    )
    save(
        {"model": model_state, "optimizer": optimizer_state},
        checkpoint_id="checkpoint-dist",  # each rank will save its own file
    )
    dist.barrier()

def load_checkpoint(model, optimizer):
    dist.barrier()
    model_state, optimizer_state = get_state_dict(
        model, optimizer, options=StateDictOptions(full_state_dict=True, cpu_offload=True)
    )
    load(
        {"model": model_state, "optimizer": optimizer_state},
        checkpoint_id="checkpoint-dist"  # each rank will load its own file
    )
    # necessary if model.load_state_dict() should be called
    set_state_dict(
        model, optimizer,
        model_state_dict=model_state, optim_state_dict=optimizer_state,
        options=StateDictOptions(broadcast_from_rank0=True, full_state_dict=True, cpu_offload=True)
    )
    dist.barrier()

...

from torch.distributed.checkpoint import load, save

from torch.distributed.checkpoint.state_dict import get_state_dict, set_state_dict, StateDictOptions

def save_checkpoint(model, optimizer):

dist.barrier()

model_state, optimizer_state = get_state_dict(

model, optimizer, options=StateDictOptions(full_state_dict=True, cpu_offload=True)

)

save(

{"model": model_state, "optimizer": optimizer_state},

checkpoint_id="checkpoint-dist", # each rank will save its own file

)

dist.barrier()

def load_checkpoint(model, optimizer):

dist.barrier()

model_state, optimizer_state = get_state_dict(

model, optimizer, options=StateDictOptions(full_state_dict=True, cpu_offload=True)

)

load(

{"model": model_state, "optimizer": optimizer_state},

checkpoint_id="checkpoint-dist" # each rank will load its own file

)

# necessary if model.load_state_dict() should be called

set_state_dict(

model, optimizer,

model_state_dict=model_state, optim_state_dict=optimizer_state,

options=StateDictOptions(broadcast_from_rank0=True, full_state_dict=True, cpu_offload=True)

)

dist.barrier()

The cpu_offload option must be removed if you do not use CPU offloading.

These two functions are supposed to be called by all processes together. Each process will save its own sharded model and optimizer state to a different file, all under the same directory as the checkpoint_id you specified. Do not attempt to read them with torch.load() since these files are in a different format. However, you can still use the same load_checkpoint() function above on an unsharded model in a plain Python script. Usually, after training is completed, you can recreate the model file from sharded checkpoints:

...
model = LlamaForPretraining(model_config) # unsharded model
optimizer = torch.optim.AdamW(model.parameters(), lr=1e-4)
load_checkpoint(model, optimizer)
torch.save(model.state_dict(), "model.pth")

...

model = LlamaForPretraining(model_config) # unsharded model

optimizer = torch.optim.AdamW(model.parameters(), lr=1e-4)

load_checkpoint(model, optimizer)

torch.save(model.state_dict(), "model.pth")

For completeness, below is the full script that you can run FSDP training:

import dataclasses
import functools
import os

import datasets
import tokenizers
import torch
import torch.distributed as dist
import torch.nn as nn
import torch.nn.functional as F
import torch.optim.lr_scheduler as lr_scheduler
import tqdm
from torch import Tensor
from torch.distributed.algorithms._checkpoint.checkpoint_wrapper import (
    apply_activation_checkpointing,
    checkpoint_wrapper,
)
from torch.distributed.checkpoint import load, save
from torch.distributed.checkpoint.state_dict import (
    StateDictOptions,
    get_state_dict,
    set_state_dict,
)
from torch.distributed.fsdp import (
    CPUOffloadPolicy,
    FSDPModule,
    MixedPrecisionPolicy,
    fully_shard,
)
from torch.distributed.fsdp.wrap import transformer_auto_wrap_policy
from torch.utils.data.distributed import DistributedSampler


# Build the model
@dataclasses.dataclass
class LlamaConfig:
    """Define Llama model hyperparameters."""
    vocab_size: int = 50000  # Size of the tokenizer vocabulary
    max_position_embeddings: int = 2048  # Maximum sequence length
    hidden_size: int = 768  # Dimension of hidden layers
    intermediate_size: int = 4*768  # Dimension of MLP's hidden layer
    num_hidden_layers: int = 12  # Number of transformer layers
    num_attention_heads: int = 12  # Number of attention heads
    num_key_value_heads: int = 3  # Number of key-value heads for GQA


class RotaryPositionEncoding(nn.Module):
    """Rotary position encoding."""

    def __init__(self, dim: int, max_position_embeddings: int) -> None:
        """Initialize the RotaryPositionEncoding module.

        Args:
            dim: The hidden dimension of the input tensor to which RoPE is applied
            max_position_embeddings: The maximum sequence length of the input tensor
        """
        super().__init__()
        self.dim = dim
        self.max_position_embeddings = max_position_embeddings
        # compute a matrix of n\theta_i
        N = 10_000.0
        inv_freq = 1.0 / (N ** (torch.arange(0, dim, 2) / dim))
        inv_freq = torch.cat((inv_freq, inv_freq), dim=-1)
        position = torch.arange(max_position_embeddings)
        sinusoid_inp = torch.outer(position, inv_freq)
        # save cosine and sine matrices as buffers, not parameters
        self.register_buffer("cos", sinusoid_inp.cos())
        self.register_buffer("sin", sinusoid_inp.sin())

    def forward(self, x: Tensor) -> Tensor:
        """Apply RoPE to tensor x.

        Args:
            x: Input tensor of shape (batch_size, seq_length, num_heads, head_dim)

        Returns:
            Output tensor of shape (batch_size, seq_length, num_heads, head_dim)
        """
        batch_size, seq_len, num_heads, head_dim = x.shape
        device = x.device
        dtype = x.dtype
        # transform the cosine and sine matrices to 4D tensor and the same dtype as x
        cos = self.cos.to(device, dtype)[:seq_len].view(1, seq_len, 1, -1)
        sin = self.sin.to(device, dtype)[:seq_len].view(1, seq_len, 1, -1)
        # apply RoPE to x
        x1, x2 = x.chunk(2, dim=-1)
        rotated = torch.cat((-x2, x1), dim=-1)
        output = (x * cos) + (rotated * sin)
        return output


class LlamaAttention(nn.Module):
    """Grouped-query attention with rotary embeddings."""

    def __init__(self, config: LlamaConfig) -> None:
        super().__init__()
        self.hidden_size = config.hidden_size
        self.num_heads = config.num_attention_heads
        self.head_dim = self.hidden_size // self.num_heads
        self.num_kv_heads = config.num_key_value_heads  # GQA: H_kv < H_q

        # hidden_size must be divisible by num_heads
        assert (self.head_dim * self.num_heads) == self.hidden_size

        # Linear layers for Q, K, V projections
        self.q_proj = nn.Linear(self.hidden_size, self.num_heads * self.head_dim, bias=False)
        self.k_proj = nn.Linear(self.hidden_size, self.num_kv_heads * self.head_dim, bias=False)
        self.v_proj = nn.Linear(self.hidden_size, self.num_kv_heads * self.head_dim, bias=False)
        self.o_proj = nn.Linear(self.num_heads * self.head_dim, self.hidden_size, bias=False)

    def reset_parameters(self):
        self.q_proj.reset_parameters()
        self.k_proj.reset_parameters()
        self.v_proj.reset_parameters()
        self.o_proj.reset_parameters()

    def forward(self, hidden_states: Tensor, rope: RotaryPositionEncoding, attn_mask: Tensor) -> Tensor:
        bs, seq_len, dim = hidden_states.size()

        # Project inputs to Q, K, V
        query_states = self.q_proj(hidden_states).view(bs, seq_len, self.num_heads, self.head_dim)
        key_states = self.k_proj(hidden_states).view(bs, seq_len, self.num_kv_heads, self.head_dim)
        value_states = self.v_proj(hidden_states).view(bs, seq_len, self.num_kv_heads, self.head_dim)

        # Apply rotary position embeddings
        query_states = rope(query_states)
        key_states = rope(key_states)

        # Transpose tensors from BSHD to BHSD dimension for scaled_dot_product_attention
        query_states = query_states.transpose(1, 2)
        key_states = key_states.transpose(1, 2)
        value_states = value_states.transpose(1, 2)

        # Use PyTorch's optimized attention implementation
        # setting is_causal=True is incompatible with setting explicit attention mask
        attn_output = F.scaled_dot_product_attention(
            query_states,
            key_states,
            value_states,
            attn_mask=attn_mask,
            dropout_p=0.0,
            enable_gqa=True,
        )

        # Transpose output tensor from BHSD to BSHD dimension, reshape to 3D, and then project output
        attn_output = attn_output.transpose(1, 2).reshape(bs, seq_len, self.hidden_size)
        attn_output = self.o_proj(attn_output)
        return attn_output


class LlamaMLP(nn.Module):
    """Feed-forward network with SwiGLU activation."""

    def __init__(self, config: LlamaConfig) -> None:
        super().__init__()
        # Two parallel projections for SwiGLU
        self.gate_proj = nn.Linear(config.hidden_size, config.intermediate_size, bias=False)
        self.up_proj = nn.Linear(config.hidden_size, config.intermediate_size, bias=False)
        self.act_fn = F.silu  # SwiGLU activation function
        # Project back to hidden size
        self.down_proj = nn.Linear(config.intermediate_size, config.hidden_size, bias=False)

    def reset_parameters(self):
        self.gate_proj.reset_parameters()
        self.up_proj.reset_parameters()
        self.down_proj.reset_parameters()

    def forward(self, x: Tensor) -> Tensor:
        # SwiGLU activation: multiply gate and up-projected inputs
        gate = self.act_fn(self.gate_proj(x))
        up = self.up_proj(x)
        return self.down_proj(gate * up)


class LlamaDecoderLayer(nn.Module):
    """Single transformer layer for a Llama model."""

    def __init__(self, config: LlamaConfig) -> None:
        super().__init__()
        self.input_layernorm = nn.RMSNorm(config.hidden_size, eps=1e-5)
        self.self_attn = LlamaAttention(config)
        self.post_attention_layernorm = nn.RMSNorm(config.hidden_size, eps=1e-5)
        self.mlp = LlamaMLP(config)

    def reset_parameters(self):
        self.input_layernorm.reset_parameters()
        self.self_attn.reset_parameters()
        self.post_attention_layernorm.reset_parameters()
        self.mlp.reset_parameters()

    def forward(self, hidden_states: Tensor, rope: RotaryPositionEncoding, attn_mask: Tensor) -> Tensor:
        # First residual block: Self-attention
        residual = hidden_states
        hidden_states = self.input_layernorm(hidden_states)
        attn_outputs = self.self_attn(hidden_states, rope=rope, attn_mask=attn_mask)
        hidden_states = attn_outputs + residual

        # Second residual block: MLP
        residual = hidden_states
        hidden_states = self.post_attention_layernorm(hidden_states)
        hidden_states = self.mlp(hidden_states) + residual
        return hidden_states


class LlamaModel(nn.Module):
    """The full Llama model without any pretraining heads."""

    def __init__(self, config: LlamaConfig) -> None:
        super().__init__()
        self.rotary_emb = RotaryPositionEncoding(
            config.hidden_size // config.num_attention_heads,
            config.max_position_embeddings,
        )

        self.embed_tokens = nn.Embedding(config.vocab_size, config.hidden_size)
        self.layers = nn.ModuleList([
            LlamaDecoderLayer(config) for _ in range(config.num_hidden_layers)
        ])
        self.norm = nn.RMSNorm(config.hidden_size, eps=1e-5)

    def reset_parameters(self):
        self.embed_tokens.reset_parameters()
        for layer in self.layers:
            layer.reset_parameters()
        self.norm.reset_parameters()

    def forward(self, input_ids: Tensor, attn_mask: Tensor) -> Tensor:
        # Convert input token IDs to embeddings
        hidden_states = self.embed_tokens(input_ids)
        # Process through all transformer layers, then the final norm layer
        for layer in self.layers:
            hidden_states = layer(hidden_states, rope=self.rotary_emb, attn_mask=attn_mask)
        hidden_states = self.norm(hidden_states)
        # Return the final hidden states
        return hidden_states


class LlamaForPretraining(nn.Module):
    def __init__(self, config: LlamaConfig) -> None:
        super().__init__()
        self.base_model = LlamaModel(config)
        self.lm_head = nn.Linear(config.hidden_size, config.vocab_size, bias=False)

    def reset_parameters(self):
        self.base_model.reset_parameters()
        self.lm_head.reset_parameters()

    def forward(self, input_ids: Tensor, attn_mask: Tensor) -> Tensor:
        hidden_states = self.base_model(input_ids, attn_mask)
        return self.lm_head(hidden_states)


def create_causal_mask(batch: Tensor, dtype: torch.dtype = torch.float32) -> Tensor:
    """Create a causal mask for self-attention.

    Args:
        batch: Batch of sequences, shape (batch_size, seq_len)
        dtype: Data type of the mask

    Returns:
        Causal mask of shape (seq_len, seq_len)
    """
    batch_size, seq_len = batch.shape
    mask = torch.full((seq_len, seq_len), float("-inf"), device=batch.device, dtype=dtype) \
                .triu(diagonal=1)
    return mask


def create_padding_mask(batch: Tensor, padding_token_id: int, dtype: torch.dtype = torch.float32) -> Tensor:
    """Create a padding mask for a batch of sequences for self-attention.

    Args:
        batch: Batch of sequences, shape (batch_size, seq_len)
        padding_token_id: ID of the padding token
        dtype: Data type of the mask

    Returns:
        Padding mask of shape (batch_size, 1, seq_len, seq_len)
    """
    padded = torch.zeros_like(batch, device=batch.device, dtype=dtype) \
                  .masked_fill(batch == padding_token_id, float("-inf"))
    mask = padded[:,:,None] + padded[:,None,:]
    return mask[:, None, :, :]


# Generator function to create padded sequences of fixed length
class PretrainingDataset(torch.utils.data.Dataset):
    def __init__(self, dataset: datasets.Dataset, tokenizer: tokenizers.Tokenizer,
                 seq_length: int):
        self.dataset = dataset
        self.tokenizer = tokenizer
        self.seq_length = seq_length
        self.bot = tokenizer.token_to_id("[BOT]")
        self.eot = tokenizer.token_to_id("[EOT]")
        self.pad = tokenizer.token_to_id("[PAD]")

    def __len__(self):
        return len(self.dataset)

    def __getitem__(self, index: int) -> tuple[Tensor, Tensor]:
        """Get a sequence of token ids from the dataset. [BOT] and [EOT] tokens
        are added. Clipped and padded to the sequence length.
        """
        seq = self.dataset[index]["text"]
        tokens: list[int] = [self.bot] + self.tokenizer.encode(seq).ids + [self.eot]
        # pad to target sequence length
        toklen = len(tokens)
        if toklen < self.seq_length+1:
            pad_length = self.seq_length+1 - toklen
            tokens += [self.pad] * pad_length
        # return the sequence
        x = torch.tensor(tokens[:self.seq_length], dtype=torch.int64)
        y = torch.tensor(tokens[1:self.seq_length+1], dtype=torch.int64)
        return x, y


def load_checkpoint(model: nn.Module, optimizer: torch.optim.Optimizer, scheduler: lr_scheduler.SequentialLR) -> None:
    dist.barrier()
    model_state, optimizer_state = get_state_dict(
        model, optimizer, options=StateDictOptions(full_state_dict=True, cpu_offload=cpu_offload),
    )
    load(
        {"model": model_state, "optimizer": optimizer_state},
        checkpoint_id="checkpoint-dist",
    )
    set_state_dict(
        model, optimizer,
        model_state_dict=model_state, optim_state_dict=optimizer_state,
        options=StateDictOptions(broadcast_from_rank0=True, full_state_dict=True, cpu_offload=cpu_offload),
    )
    scheduler.load_state_dict(
        torch.load("checkpoint-dist/lrscheduler.pt", map_location=device),
    )
    dist.barrier()


def save_checkpoint(model: nn.Module, optimizer: torch.optim.Optimizer, scheduler: lr_scheduler.SequentialLR) -> None:
    dist.barrier()
    model_state, optimizer_state = get_state_dict(
        model, optimizer, options=StateDictOptions(full_state_dict=True, cpu_offload=cpu_offload),
    )
    save(
        {"model": model_state, "optimizer": optimizer_state},
        checkpoint_id="checkpoint-dist",
    )
    if dist.get_rank() == 0:
        torch.save(scheduler.state_dict(), "checkpoint-dist/lrscheduler.pt")
    dist.barrier()


# Load the tokenizer and dataset
tokenizer = tokenizers.Tokenizer.from_file("bpe_50K.json")
dataset = datasets.load_dataset("HuggingFaceFW/fineweb", "sample-10BT", split="train")

# Initialize the distributed environment
dist.init_process_group(backend="nccl")
local_rank = int(os.environ["LOCAL_RANK"])
device = torch.device(f"cuda:{local_rank}")
rank = dist.get_rank()
world_size = dist.get_world_size()
print(f"World size {world_size}, rank {rank}, local rank {local_rank}. Using {device}")

# Create pretraining model on meta device, on all ranks
with torch.device("meta"):
    model_config = LlamaConfig()
    model = LlamaForPretraining(model_config)

# Convert model from meta device to FSDP2, must shard every component
cpu_offload = False
fsdp_kwargs = {
    # optional: use mixed precision training
    "mp_policy": MixedPrecisionPolicy(
        param_dtype=torch.bfloat16,
        reduce_dtype=torch.float32,
    ),
    # optional: CPU offloading
    "offload_policy": CPUOffloadPolicy() if cpu_offload else None,
    # optional: discard all-gathered parameters after forward pass even on root modules
    # "reshard_after_forward": True,
}
for layer in model.base_model.layers:
    fully_shard(layer, **fsdp_kwargs)
fully_shard(model.base_model, **fsdp_kwargs)
fully_shard(model, **fsdp_kwargs)
model.to_empty(device="cpu" if cpu_offload else device)
model.reset_parameters()
assert isinstance(model, FSDPModule), f"Expected FSDPModule, got {type(model)}"

# Set explicit prefetching on models
# more prefetching uses more memory, but allow more overlap of computation and communication
num_prefetch = 1
if num_prefetch > 1:
    modules = list(model.base_model.layers)
    for i, module in enumerate(modules):
        if i == len(modules) - 1:
            break
        module.set_modules_to_forward_prefetch(modules[i+1:i+num_prefetch+1])
    for i, module in enumerate(modules):
        if i == 0:
            continue
        module.set_modules_to_backward_prefetch(modules[max(0, i-num_prefetch):i])

# Optional: Apply gradient checkpointing on a distributed model (all ranks)
#wrap_policy = functools.partial(
#    transformer_auto_wrap_policy,
#    transformer_layer_cls={LlamaDecoderLayer, nn.Embedding},
#)
#apply_activation_checkpointing(
#    model,
#    checkpoint_wrapper_fn=checkpoint_wrapper,
#    auto_wrap_policy=wrap_policy,
#)

# Training parameters
epochs = 3
learning_rate = 1e-3
batch_size = 64 // world_size
seq_length = 512
num_warmup_steps = 1000
PAD_TOKEN_ID = tokenizer.token_to_id("[PAD]")
model.train()

# DataLoader, optimizer, scheduler, and loss function
# Sampler is needed to shard the dataset across world size
dataset = PretrainingDataset(dataset, tokenizer, seq_length)
sampler = DistributedSampler(dataset, shuffle=False, drop_last=True)
dataloader = torch.utils.data.DataLoader(
    dataset,
    sampler=sampler,
    batch_size=batch_size,
    pin_memory=True,  # optional
    shuffle=False,
    num_workers=2,
    prefetch_factor=2,
)
num_training_steps = len(dataloader) * epochs

optimizer = torch.optim.AdamW(
    model.parameters(), lr=learning_rate, betas=(0.9, 0.99), eps=1e-8, weight_decay=0.1,
)
warmup_scheduler = lr_scheduler.LinearLR(
    optimizer,
    start_factor=0.1, end_factor=1.0, total_iters=num_warmup_steps,
)
cosine_scheduler = lr_scheduler.CosineAnnealingLR(
    optimizer,
    T_max=num_training_steps - num_warmup_steps,
    eta_min=0,
)
scheduler = lr_scheduler.SequentialLR(
    optimizer,
    schedulers=[warmup_scheduler, cosine_scheduler],
    milestones=[num_warmup_steps],
)
loss_fn = nn.CrossEntropyLoss(ignore_index=PAD_TOKEN_ID)

# Optional: Compile the model and loss function
#model = torch.compile(model)
#loss_fn = torch.compile(loss_fn)

# if checkpoint-dist dir exists, load the checkpoint to model and optimizer
if os.path.exists("checkpoint-dist"):
    load_checkpoint(model, optimizer, scheduler)

# start training
for epoch in range(epochs):
    pbar = tqdm.tqdm(dataloader, desc=f"Epoch {epoch+1}/{epochs}")
    for batch_id, batch in enumerate(pbar):
        if batch_id % 1000 == 0:
            save_checkpoint(model, optimizer, scheduler)
        # Explicit prefetching before sending any data to model
        model.unshard()
        # Get batched data, move from CPU to GPU
        input_ids, target_ids = batch
        input_ids = input_ids.to(device)
        target_ids = target_ids.to(device)
        # create attention mask: causal mask + padding mask
        attn_mask = create_causal_mask(input_ids) + \
                    create_padding_mask(input_ids, PAD_TOKEN_ID)
        # Extract output from model
        logits = model(input_ids, attn_mask)
        # Compute loss: cross-entropy between logits and target, ignoring padding tokens
        loss = loss_fn(logits.view(-1, logits.size(-1)), target_ids.view(-1))
        # Backward with loss and gradient clipping by L2 norm to 1.0
        # Optimizer and gradient clipping works on DTensor
        optimizer.zero_grad(set_to_none=False if cpu_offload else True)
        loss.backward()
        # All-reduce fail if using CPU offloading
        if not cpu_offload:
            torch.nn.utils.clip_grad_norm_(model.parameters(), 1.0)
        optimizer.step()
        scheduler.step()
        pbar.set_postfix(loss=loss.item())
        pbar.update(1)
    pbar.close()

# Save the model
save_checkpoint(model, optimizer, scheduler)

# Clean up the distributed environment
dist.destroy_process_group()

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

379

380

381

382

383

384

385

386

387

388

389

390

391

392

393

394

395

396

397

398

399

400

401

402

403

404

405

406

407

408

409

410

411

412

413

414

415

416

417

418

419

420

421

422

423

424

425

426

427

428

429

430

431

432

433

434

435

436

437

438

439

440

441

442

443

444

445

446

447

448

449

450

451

452

453

454

455

456

457

458

459

460

461

462

463

464

465

466

467

468

469

470

471

472

473

474

475

476

477

478

479

480

481

482

483

484

485

486

487

488

489

490

491

492

493

494

495

496

497

498

499

500

501

import dataclasses

import functools

import os

import datasets

import tokenizers

import torch

import torch.distributed as dist

import torch.nn as nn

import torch.nn.functional as F

import torch.optim.lr_scheduler as lr_scheduler

import tqdm

from torch import Tensor

from torch.distributed.algorithms._checkpoint.checkpoint_wrapper import (

apply_activation_checkpointing,

checkpoint_wrapper,

)

from torch.distributed.checkpoint import load, save

from torch.distributed.checkpoint.state_dict import (

StateDictOptions,

get_state_dict,

set_state_dict,

)

from torch.distributed.fsdp import (

CPUOffloadPolicy,

FSDPModule,

MixedPrecisionPolicy,

fully_shard,

)

from torch.distributed.fsdp.wrap import transformer_auto_wrap_policy

from torch.utils.data.distributed import DistributedSampler

# Build the model

@dataclasses.dataclass

class LlamaConfig:

"""Define Llama model hyperparameters."""

vocab_size: int = 50000 # Size of the tokenizer vocabulary

max_position_embeddings: int = 2048 # Maximum sequence length

hidden_size: int = 768 # Dimension of hidden layers

intermediate_size: int = 4*768 # Dimension of MLP's hidden layer

num_hidden_layers: int = 12 # Number of transformer layers

num_attention_heads: int = 12 # Number of attention heads

num_key_value_heads: int = 3 # Number of key-value heads for GQA

class RotaryPositionEncoding(nn.Module):

"""Rotary position encoding."""

def __init__(self, dim: int, max_position_embeddings: int) -> None:

"""Initialize the RotaryPositionEncoding module.

Args:

dim: The hidden dimension of the input tensor to which RoPE is applied

max_position_embeddings: The maximum sequence length of the input tensor

"""

super().__init__()

self.dim = dim

self.max_position_embeddings = max_position_embeddings

# compute a matrix of n\theta_i

N = 10_000.0

inv_freq = 1.0 / (N ** (torch.arange(0, dim, 2) / dim))

inv_freq = torch.cat((inv_freq, inv_freq), dim=-1)

position = torch.arange(max_position_embeddings)

sinusoid_inp = torch.outer(position, inv_freq)

# save cosine and sine matrices as buffers, not parameters

self.register_buffer("cos", sinusoid_inp.cos())

self.register_buffer("sin", sinusoid_inp.sin())

def forward(self, x: Tensor) -> Tensor:

"""Apply RoPE to tensor x.

Args:

x: Input tensor of shape (batch_size, seq_length, num_heads, head_dim)

Returns:

Output tensor of shape (batch_size, seq_length, num_heads, head_dim)

"""

batch_size, seq_len, num_heads, head_dim = x.shape

device = x.device

dtype = x.dtype

# transform the cosine and sine matrices to 4D tensor and the same dtype as x

cos = self.cos.to(device, dtype)[:seq_len].view(1, seq_len, 1, -1)

sin = self.sin.to(device, dtype)[:seq_len].view(1, seq_len, 1, -1)

# apply RoPE to x

x1, x2 = x.chunk(2, dim=-1)

rotated = torch.cat((-x2, x1), dim=-1)

output = (x * cos) + (rotated * sin)

return output

class LlamaAttention(nn.Module):

"""Grouped-query attention with rotary embeddings."""

def __init__(self, config: LlamaConfig) -> None:

super().__init__()

self.hidden_size = config.hidden_size

self.num_heads = config.num_attention_heads

self.head_dim = self.hidden_size // self.num_heads

self.num_kv_heads = config.num_key_value_heads # GQA: H_kv < H_q

# hidden_size must be divisible by num_heads

assert (self.head_dim * self.num_heads) == self.hidden_size

# Linear layers for Q, K, V projections

self.q_proj = nn.Linear(self.hidden_size, self.num_heads * self.head_dim, bias=False)

self.k_proj = nn.Linear(self.hidden_size, self.num_kv_heads * self.head_dim, bias=False)

self.v_proj = nn.Linear(self.hidden_size, self.num_kv_heads * self.head_dim, bias=False)

self.o_proj = nn.Linear(self.num_heads * self.head_dim, self.hidden_size, bias=False)

def reset_parameters(self):

self.q_proj.reset_parameters()

self.k_proj.reset_parameters()

self.v_proj.reset_parameters()

self.o_proj.reset_parameters()

def forward(self, hidden_states: Tensor, rope: RotaryPositionEncoding, attn_mask: Tensor) -> Tensor:

bs, seq_len, dim = hidden_states.size()

# Project inputs to Q, K, V

query_states = self.q_proj(hidden_states).view(bs, seq_len, self.num_heads, self.head_dim)

key_states = self.k_proj(hidden_states).view(bs, seq_len, self.num_kv_heads, self.head_dim)

value_states = self.v_proj(hidden_states).view(bs, seq_len, self.num_kv_heads, self.head_dim)

# Apply rotary position embeddings

query_states = rope(query_states)

key_states = rope(key_states)

# Transpose tensors from BSHD to BHSD dimension for scaled_dot_product_attention

query_states = query_states.transpose(1, 2)

key_states = key_states.transpose(1, 2)

value_states = value_states.transpose(1, 2)

# Use PyTorch's optimized attention implementation

# setting is_causal=True is incompatible with setting explicit attention mask

attn_output = F.scaled_dot_product_attention(

query_states,

key_states,

value_states,

attn_mask=attn_mask,

dropout_p=0.0,

enable_gqa=True,

)

# Transpose output tensor from BHSD to BSHD dimension, reshape to 3D, and then project output

attn_output = attn_output.transpose(1, 2).reshape(bs, seq_len, self.hidden_size)

attn_output = self.o_proj(attn_output)

return attn_output

class LlamaMLP(nn.Module):

"""Feed-forward network with SwiGLU activation."""

def __init__(self, config: LlamaConfig) -> None:

super().__init__()

# Two parallel projections for SwiGLU

self.gate_proj = nn.Linear(config.hidden_size, config.intermediate_size, bias=False)

self.up_proj = nn.Linear(config.hidden_size, config.intermediate_size, bias=False)

self.act_fn = F.silu # SwiGLU activation function

# Project back to hidden size

self.down_proj = nn.Linear(config.intermediate_size, config.hidden_size, bias=False)

def reset_parameters(self):

self.gate_proj.reset_parameters()

self.up_proj.reset_parameters()

self.down_proj.reset_parameters()

def forward(self, x: Tensor) -> Tensor:

# SwiGLU activation: multiply gate and up-projected inputs

gate = self.act_fn(self.gate_proj(x))

up = self.up_proj(x)

return self.down_proj(gate * up)

class LlamaDecoderLayer(nn.Module):

"""Single transformer layer for a Llama model."""

def __init__(self, config: LlamaConfig) -> None:

super().__init__()

self.input_layernorm = nn.RMSNorm(config.hidden_size, eps=1e-5)

self.self_attn = LlamaAttention(config)

self.post_attention_layernorm = nn.RMSNorm(config.hidden_size, eps=1e-5)

self.mlp = LlamaMLP(config)

def reset_parameters(self):

self.input_layernorm.reset_parameters()

self.self_attn.reset_parameters()

self.post_attention_layernorm.reset_parameters()

self.mlp.reset_parameters()

def forward(self, hidden_states: Tensor, rope: RotaryPositionEncoding, attn_mask: Tensor) -> Tensor:

# First residual block: Self-attention

residual = hidden_states

hidden_states = self.input_layernorm(hidden_states)

attn_outputs = self.self_attn(hidden_states, rope=rope, attn_mask=attn_mask)

hidden_states = attn_outputs + residual

# Second residual block: MLP

residual = hidden_states

hidden_states = self.post_attention_layernorm(hidden_states)

hidden_states = self.mlp(hidden_states) + residual

return hidden_states

class LlamaModel(nn.Module):

"""The full Llama model without any pretraining heads."""

def __init__(self, config: LlamaConfig) -> None:

super().__init__()

self.rotary_emb = RotaryPositionEncoding(

config.hidden_size // config.num_attention_heads,

config.max_position_embeddings,

)

self.embed_tokens = nn.Embedding(config.vocab_size, config.hidden_size)

self.layers = nn.ModuleList([

LlamaDecoderLayer(config) for _ in range(config.num_hidden_layers)

])

self.norm = nn.RMSNorm(config.hidden_size, eps=1e-5)

def reset_parameters(self):

self.embed_tokens.reset_parameters()

for layer in self.layers:

layer.reset_parameters()

self.norm.reset_parameters()

def forward(self, input_ids: Tensor, attn_mask: Tensor) -> Tensor:

# Convert input token IDs to embeddings

hidden_states = self.embed_tokens(input_ids)

# Process through all transformer layers, then the final norm layer

for layer in self.layers:

hidden_states = layer(hidden_states, rope=self.rotary_emb, attn_mask=attn_mask)

hidden_states = self.norm(hidden_states)

# Return the final hidden states

return hidden_states

class LlamaForPretraining(nn.Module):

def __init__(self, config: LlamaConfig) -> None:

super().__init__()

self.base_model = LlamaModel(config)

self.lm_head = nn.Linear(config.hidden_size, config.vocab_size, bias=False)

def reset_parameters(self):

self.base_model.reset_parameters()

self.lm_head.reset_parameters()

def forward(self, input_ids: Tensor, attn_mask: Tensor) -> Tensor:

hidden_states = self.base_model(input_ids, attn_mask)

return self.lm_head(hidden_states)

def create_causal_mask(batch: Tensor, dtype: torch.dtype = torch.float32) -> Tensor:

"""Create a causal mask for self-attention.

Args:

batch: Batch of sequences, shape (batch_size, seq_len)

dtype: Data type of the mask

Returns:

Causal mask of shape (seq_len, seq_len)

"""

batch_size, seq_len = batch.shape

mask = torch.full((seq_len, seq_len), float("-inf"), device=batch.device, dtype=dtype) \

.triu(diagonal=1)

return mask

def create_padding_mask(batch: Tensor, padding_token_id: int, dtype: torch.dtype = torch.float32) -> Tensor:

"""Create a padding mask for a batch of sequences for self-attention.

Args:

batch: Batch of sequences, shape (batch_size, seq_len)

padding_token_id: ID of the padding token

dtype: Data type of the mask

Returns:

Padding mask of shape (batch_size, 1, seq_len, seq_len)

"""

padded = torch.zeros_like(batch, device=batch.device, dtype=dtype) \

.masked_fill(batch == padding_token_id, float("-inf"))

mask = padded[:,:,None] + padded[:,None,:]

return mask[:, None, :, :]

# Generator function to create padded sequences of fixed length

class PretrainingDataset(torch.utils.data.Dataset):

def __init__(self, dataset: datasets.Dataset, tokenizer: tokenizers.Tokenizer,

seq_length: int):

self.dataset = dataset

self.tokenizer = tokenizer

self.seq_length = seq_length

self.bot = tokenizer.token_to_id("[BOT]")

self.eot = tokenizer.token_to_id("[EOT]")

self.pad = tokenizer.token_to_id("[PAD]")

def __len__(self):

return len(self.dataset)

def __getitem__(self, index: int) -> tuple[Tensor, Tensor]:

"""Get a sequence of token ids from the dataset. [BOT] and [EOT] tokens

are added. Clipped and padded to the sequence length.

"""

seq = self.dataset[index]["text"]

tokens: list[int] = [self.bot] + self.tokenizer.encode(seq).ids + [self.eot]

# pad to target sequence length

toklen = len(tokens)

if toklen < self.seq_length+1:

pad_length = self.seq_length+1 - toklen

tokens += [self.pad] * pad_length

# return the sequence

x = torch.tensor(tokens[:self.seq_length], dtype=torch.int64)

y = torch.tensor(tokens[1:self.seq_length+1], dtype=torch.int64)

return x, y

def load_checkpoint(model: nn.Module, optimizer: torch.optim.Optimizer, scheduler: lr_scheduler.SequentialLR) -> None:

dist.barrier()

model_state, optimizer_state = get_state_dict(

model, optimizer, options=StateDictOptions(full_state_dict=True, cpu_offload=cpu_offload),

)

load(

{"model": model_state, "optimizer": optimizer_state},

checkpoint_id="checkpoint-dist",

)

set_state_dict(

model, optimizer,

model_state_dict=model_state, optim_state_dict=optimizer_state,

options=StateDictOptions(broadcast_from_rank0=True, full_state_dict=True, cpu_offload=cpu_offload),

)

scheduler.load_state_dict(

torch.load("checkpoint-dist/lrscheduler.pt", map_location=device),

)

dist.barrier()

def save_checkpoint(model: nn.Module, optimizer: torch.optim.Optimizer, scheduler: lr_scheduler.SequentialLR) -> None:

dist.barrier()

model_state, optimizer_state = get_state_dict(

model, optimizer, options=StateDictOptions(full_state_dict=True, cpu_offload=cpu_offload),

)

save(

{"model": model_state, "optimizer": optimizer_state},

checkpoint_id="checkpoint-dist",

)

if dist.get_rank() == 0:

torch.save(scheduler.state_dict(), "checkpoint-dist/lrscheduler.pt")

dist.barrier()

# Load the tokenizer and dataset

tokenizer = tokenizers.Tokenizer.from_file("bpe_50K.json")

dataset = datasets.load_dataset("HuggingFaceFW/fineweb", "sample-10BT", split="train")

# Initialize the distributed environment

dist.init_process_group(backend="nccl")

local_rank = int(os.environ["LOCAL_RANK"])

device = torch.device(f"cuda:{local_rank}")

rank = dist.get_rank()

world_size = dist.get_world_size()

print(f"World size {world_size}, rank {rank}, local rank {local_rank}. Using {device}")

# Create pretraining model on meta device, on all ranks

with torch.device("meta"):

model_config = LlamaConfig()

model = LlamaForPretraining(model_config)

# Convert model from meta device to FSDP2, must shard every component

cpu_offload = False

fsdp_kwargs = {

# optional: use mixed precision training

"mp_policy": MixedPrecisionPolicy(

param_dtype=torch.bfloat16,

reduce_dtype=torch.float32,

# optional: CPU offloading

"offload_policy": CPUOffloadPolicy() if cpu_offload else None,

# optional: discard all-gathered parameters after forward pass even on root modules

# "reshard_after_forward": True,

}

for layer in model.base_model.layers:

fully_shard(layer, **fsdp_kwargs)

fully_shard(model.base_model, **fsdp_kwargs)

fully_shard(model, **fsdp_kwargs)

model.to_empty(device="cpu" if cpu_offload else device)

model.reset_parameters()

assert isinstance(model, FSDPModule), f"Expected FSDPModule, got {type(model)}"

# Set explicit prefetching on models

# more prefetching uses more memory, but allow more overlap of computation and communication

num_prefetch = 1

if num_prefetch > 1:

modules = list(model.base_model.layers)

for i, module in enumerate(modules):

if i == len(modules) - 1:

break

module.set_modules_to_forward_prefetch(modules[i+1:i+num_prefetch+1])

for i, module in enumerate(modules):

if i == 0:

continue

module.set_modules_to_backward_prefetch(modules[max(0, i-num_prefetch):i])

# Optional: Apply gradient checkpointing on a distributed model (all ranks)

#wrap_policy = functools.partial(

# transformer_auto_wrap_policy,

# transformer_layer_cls={LlamaDecoderLayer, nn.Embedding},

#apply_activation_checkpointing(

# model,

# checkpoint_wrapper_fn=checkpoint_wrapper,

# auto_wrap_policy=wrap_policy,

# Training parameters

epochs = 3

learning_rate = 1e-3

batch_size = 64 // world_size

seq_length = 512

num_warmup_steps = 1000

PAD_TOKEN_ID = tokenizer.token_to_id("[PAD]")

model.train()

# DataLoader, optimizer, scheduler, and loss function

# Sampler is needed to shard the dataset across world size

dataset = PretrainingDataset(dataset, tokenizer, seq_length)

sampler = DistributedSampler(dataset, shuffle=False, drop_last=True)

dataloader = torch.utils.data.DataLoader(

dataset,

sampler=sampler,

batch_size=batch_size,

pin_memory=True, # optional

shuffle=False,

num_workers=2,

prefetch_factor=2,

)

num_training_steps = len(dataloader) * epochs

optimizer = torch.optim.AdamW(

model.parameters(), lr=learning_rate, betas=(0.9, 0.99), eps=1e-8, weight_decay=0.1,

)

warmup_scheduler = lr_scheduler.LinearLR(

optimizer,

start_factor=0.1, end_factor=1.0, total_iters=num_warmup_steps,

)

cosine_scheduler = lr_scheduler.CosineAnnealingLR(

optimizer,

T_max=num_training_steps - num_warmup_steps,

eta_min=0,

)

scheduler = lr_scheduler.SequentialLR(

optimizer,

schedulers=[warmup_scheduler, cosine_scheduler],

milestones=[num_warmup_steps],

)

loss_fn = nn.CrossEntropyLoss(ignore_index=PAD_TOKEN_ID)

# Optional: Compile the model and loss function

#model = torch.compile(model)

#loss_fn = torch.compile(loss_fn)

# if checkpoint-dist dir exists, load the checkpoint to model and optimizer

if os.path.exists("checkpoint-dist"):

load_checkpoint(model, optimizer, scheduler)

# start training

for epoch in range(epochs):

pbar = tqdm.tqdm(dataloader, desc=f"Epoch {epoch+1}/{epochs}")

for batch_id, batch in enumerate(pbar):

if batch_id % 1000 == 0:

save_checkpoint(model, optimizer, scheduler)

# Explicit prefetching before sending any data to model

model.unshard()

# Get batched data, move from CPU to GPU

input_ids, target_ids = batch

input_ids = input_ids.to(device)

target_ids = target_ids.to(device)

# create attention mask: causal mask + padding mask

attn_mask = create_causal_mask(input_ids) + \

create_padding_mask(input_ids, PAD_TOKEN_ID)

# Extract output from model

logits = model(input_ids, attn_mask)

# Compute loss: cross-entropy between logits and target, ignoring padding tokens

loss = loss_fn(logits.view(-1, logits.size(-1)), target_ids.view(-1))

# Backward with loss and gradient clipping by L2 norm to 1.0

# Optimizer and gradient clipping works on DTensor

optimizer.zero_grad(set_to_none=False if cpu_offload else True)

loss.backward()

# All-reduce fail if using CPU offloading

if not cpu_offload:

torch.nn.utils.clip_grad_norm_(model.parameters(), 1.0)

optimizer.step()

scheduler.step()

pbar.set_postfix(loss=loss.item())

pbar.update(1)

pbar.close()

# Save the model

save_checkpoint(model, optimizer, scheduler)

# Clean up the distributed environment

dist.destroy_process_group()

To run this code, you need to run it with the torchrun command, such as torchrun --standalone --nproc_per_node=4 fsdp_training.py.

This code incorporates all elements discussed in this article. It may not be the most efficient implementation. You should read and modify it to suit your needs.

Summary

In this article, you learned about Fully Sharded Data Parallelism (FSDP) and how to use it in PyTorch. Specifically, you learned:

FSDP is a data parallelism technique that shards the model across multiple GPUs.
FSDP requires more communication and has a more complex workflow than plain data parallelism.
FSDP can be used to train very large models with fewer GPUs. You can also apply mixed-precision training and other techniques to trade off memory and compute performance.

Navigation

Train Your Large Model on Multiple GPUs with Fully Sharded Data Parallelism

Overview

Introduction to Fully Sharded Data Parallel

Preparing Model for FSDP Training

Training Loop with FSDP

Fine-Tuning FSDP Behavior

Using `torch.compile()`

Arguments to `fully_shard()`

Gradient Checkpointing

All-Gather Prefetching

Checkpointing FSDP Models

Further Readings

Summary

More On This Topic

No comments yet.

Leave a Reply Click here to cancel reply.

Navigation

Overview

Introduction to Fully Sharded Data Parallel

Preparing Model for FSDP Training

Training Loop with FSDP

Fine-Tuning FSDP Behavior

Using torch.compile()

Arguments to fully_shard()

Gradient Checkpointing

All-Gather Prefetching

Checkpointing FSDP Models

Further Readings

Summary

More On This Topic

No comments yet.

Leave a Reply Click here to cancel reply.

Using `torch.compile()`

Arguments to `fully_shard()`
